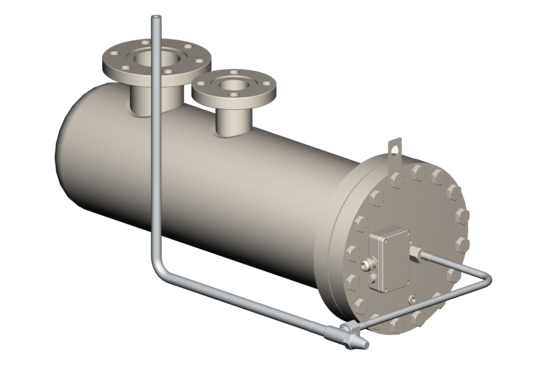

NRP
new refrigerant pump

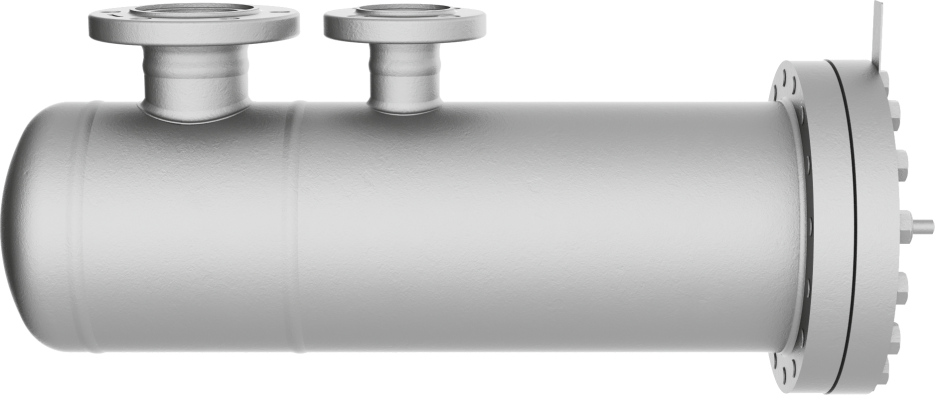

Hermetic refrigarant pump for CO2 up to 63 bar
The WITT NRP design can count on more than two decades of experience with the natural refrigerant CO2 (R744). The NRP provides reliable operation suitable up to 63 bar standstill pressure.
Possible replacement of almost any refrigerant pump

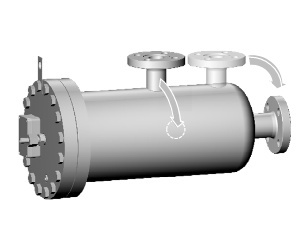

You decide on the arrangement of the connection nozzles to suit the situation on site; so you can easily replace other refrigerant pump brands when needed.
Excellent overall efficiency
The new hydraulic design and no need for a motor can improves efficiency. Almost the entire volume flow is available for your system, as the NRP requires only a very small motor cooling line. No additional QMIN- and/or overflow line is needed. The wide permitted frequency range between 20 Hz and 60 Hz allows you to operate the NRP constantly at the optimum operating point.
Easiest assembly
A standard support bracket installed at the pump's balance point facilitates installation and the optimised design of the NRP allows easy insulation.
Maintenance free design
The great advantage of the WITT wet rotor NRP pump is its reliability. Compared to a canned pump, the NRP has improved oil and dirt compatibility. Sudden pressure drops, temperature fluctuations and the pumping of gaseous refrigerants are also possible to a limited extent.

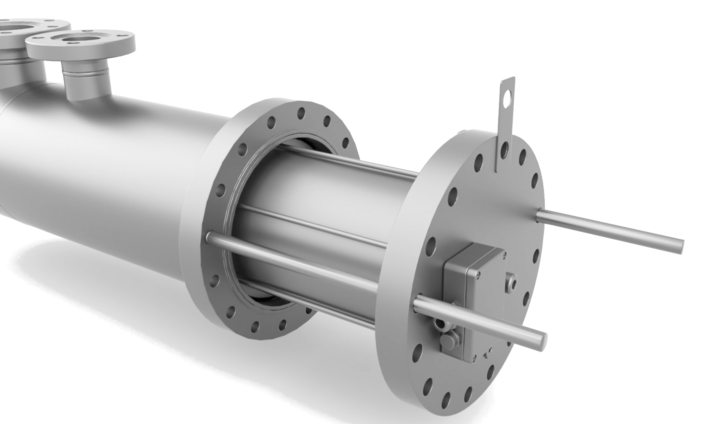

If the system should nevertheless require service, the entire inner part of the pump
can be removed from the housing, so the housing can remain in the system.
* According to TH.WITT warranty conditions
Technical Data
open here
| NRP | Delivery head* max. [m] | Pump capacity* max. [m³/h] | Power max (A) | Motor capacity [kW] | |
|---|---|---|---|---|---|
| W 1/5-5040 | 50 Hz 400 V | 18,0 | 13,0 | 3,8 | 2,3 |
| 60 Hz 400 V | 26,5 | 16,0 | 6,0 | 3,6 | |
| W 2/5-5040 | 50 Hz 400 V | 36,5 | 13,0 | 4,3 | 2,6 |
| 60 Hz 400 V | 53,0 | 16,0 | 8,0 | 4,8 | |
| W 3/5-5040 | 50 Hz 400 V | 55,0 | 13,0 | 5,0 | 3,0 |
| 60 Hz 400 V | 79,0 | 16,0 | 8,0 | 4,8 | |
| W 4/5-5040 | 50 Hz 400 V | 73,0 | 13,0 | 5,7 | 3,4 |
| 60 Hz 400 V | 105,0 | 16,0 | 9,5 | 5,7 | |
| W 1/12-8050 | 50 Hz 400 V | 18,0 | 30,0 | 5,0 | 3,0 |
| 60 Hz 400 V | 26,5 | 35,0 | 12,5 | 7,5 | |
| W 2/12-8050 | 60 Hz 400 V | 36,5 | 30,0 | 7,0 | 4,2 |
| 60 Hz 400 V | 53,0 | 35,0 | 12,5 | 7,5 | |
| W 3/12-8050 | 60 Hz 400 V | 55,0 | 30,0 | 10,0 | 6,0 |
| 60 Hz 400 V | 79,0 | 35,0 | 17,0 | 10.2 | |
| W 4/12-8050 | 60 Hz 400 V | 73,0 | 30,0 | 12,5 | 7,4 |
| 60 Hz 400 V | 105,0 | 35,0 | 21,5 | 13,0 |
* 50 / 60 Hz at 2900 / 3600 1/min
| Length [mm] | Diameter [mm] | Suction connection Ø [DN] | Pressure connection Ø [DN] | Weight** [kg] | min. Ø Inflow [DN] | |
|---|---|---|---|---|---|---|
| W 1/5-5040 | 706 | 219,1 | 50 | 40 | 93 | 100 |
| W 2/5-5040 | 706 | 219,1 | 50 | 40 | 95 | 100 |
| W 3/5-5040 | 706 | 219,1 | 50 | 40 | 97 | 100 |
| W 4/5-5040 | 706 | 219,1 | 50 | 40 | 99 | 100 |
| W 1/12-8050 | 811 | 219,1 | 80 | 50 | 103 | 150 |
| W 2/12-8050 | 811 | 219,1 | 80 | 50 | 104 | 150 |
| W 3/12-8050 | 811 | 219,1 | 80 | 50 | 106 | 150 |
| W 4/12-8050 | 811 | 219,1 | 80 | 50 | 107 | 150 |
** with EA + ERA

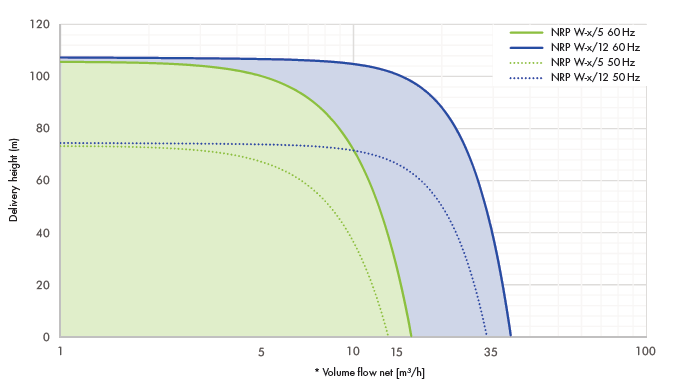

Pump curve
open here
Wide field of performance: 2 models with up to 4 stages
Choose between the models NRP-W x/5 and NRP-W x/12, each with 1 to 4 stages. .
Delivery height:
up to 75 m at 50 Hz
up to 115 m at 60 Hz
Frequency control:
20 to 60 Hz
Operating temperature:
–50 °C to +20 °C
Motor power:
2 kW and 4 kW
Volume flow net *:
up to 29 m³/h at 50 Hz
up to 35 m³/h at 60 Hz
Ambient temperature:
–10 °C to +50 °C
Connections:
WITT round flanges,
others on request
Conformity:
PED and CE
* The motor cooling volume flow is already extracted.
Article numbers for variants & accessories
open here
Are you interested in an NRP hermetic refrigerant pump?
Just use our easy contact form.
We then select the perfect model for you.
Of course, you can select our selection program “WITT Select”.
